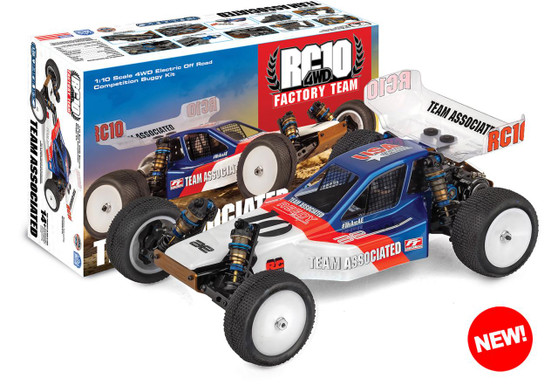

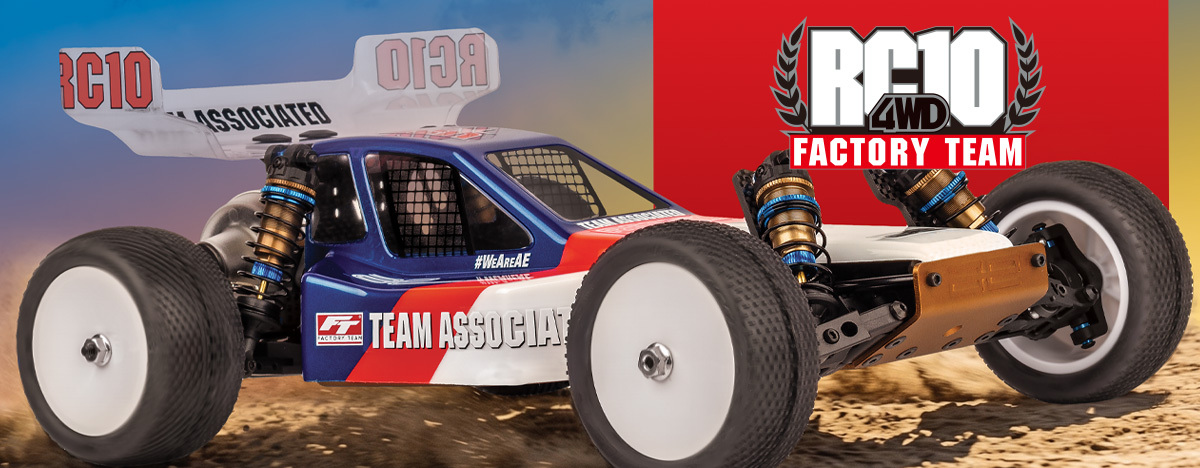

RC10 4WD Factory Team Kit

RC10 4WD Factory Team Kit

$479.99
You save $240.00
MSRP: $719.99
SKU:
6055
UPC:
784695060555
Maximum Purchase:
2 units
Out of stock
Manuals/DocumentsFactory Team Parts
RC10 4WD Factory Team Kit
The Team Associated RC10 4WD Factory Team is Engineered for Victory!

With over 40 years of racing heritage, the RC10 platform remains an icon, now evolved by the AREA 51 Factory Team to dominate modern tracks.

This ultimate edition features a bronze anodized 6061-T6 aluminum monocoque chassis paired with Kashima coated 13mm Big Bore shocks and low CG carbon fiber towers for elite handling.

The race-proven Stealth transmission and V2 slipper clutch provide a durable powerhouse. Completed with all-black plastics, a sleek Mirage Pro body, and a B7 rear wing, this kit delivers a factory level setup that seamlessly blends vintage soul with cutting edge performance.

Features

  • Bronze anodized 6061-T6 aluminum monocoque 4wd tub chassis
  • Bronze anodized nose plate and cut motor plate
  • Exclusive black anodized nose tubes
  • Black anodized aluminum chassis stiffeners
  • Black anodized thumb nuts
  • All black plastics
  • New Mirage Pro clear lexan body
  • B7 rear wing included
  • Factory Team captured hinge pins all around
  • New Carbon Fiber steering plates
  • New Rear Carbon fiber shock tower integrates B6 wing mount
  • Kashima coated 13mm big bore factory team shocks included
  • New lower CG carbon fiber front and rear shock towers (Big bore compliant)
  • Factory Team 12mm hex front axle and rear CVA’s • B84 12mm hex white wheels included
  • Carbon Fiber transmission brace
  • CNC Blue anodized pulley flanges
  • New servo mount and belt guide system
  • Fully adjustable four-wheel independent suspension
  • Race proven front and rear Stealth transmissions
  • Adjustable ball differentials front and rear
  • Exceptional ground clearance with low center of gravity
  • Precision bearings throughout
  • Adjustable heavy duty 3.5mm turnbuckles and ball cups all around
  • Front and rear CVA driveshafts with 12mm Hex front and rear
  • Durable low friction center belt and tension system
  • Long front arm geometry
  • New front caster and spindle assembly designed for RC104WD
  • Updated rear bulkhead and chassis stiffener
  • HD Metric Ball Studs throughout
  • Race Proven V2 Slipper Clutch System
  • All new 4wd Worlds style Specific Bell Crank system

Required to Complete

  • Motor
  • Battery
  • Charger
  • Servo
  • ESC
  • Radio
  • Assembly and painting required

Manuals/Documents



Due to ongoing R&D, photos may not match final vehicle. Vehicle shown on these pages equipped with items NOT included.

Power Source:
Electric
Terrain:
Off-Road
Body Style:
Buggy
Scale Size:
1:10 Scale
Assembly Level:
Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
Length:
381mm (15in)
Width:
241mm (9.49in)
Wheelbase:
273mm (10.75in)
Weight:
varies
Internal Gear Ratio:
2.6:1
Drive:
4WD
Product Status:
Active
