RC10B7D Team Kit

RC10B7D Team Kit

$389.99
You save $180.00
MSRP: $569.99
SKU:
90042
UPC:
784695900424
RC10B7D Team Kit
Champions by Design
Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation to the world--the RC10B7. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7 is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.

The RC10B7D is the recommended starting kit for those who plan to race on dirt, clay, and some low-grip AstroTurfR tracks. This kit comes equipped with a ball differential and an optimized setup which includes softer springs and lower pack pistons. As with previous generations, the RC10B7D and RC10B7 feature fully interchangeable parts between the two kits, which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion that is found in any Team Associated race platform.

Wallpaper

#90042 RC10B7D Team Kit
768x1024 1280x960 1440x900 1920x1200

This vehicle needs extra parts to make it operational. Click on the Specifications link to see what extra equipment you'll need to make the vehicle operational, such as batteries and charger.

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: Reedy motor, battery, ESC, servo, receiver, wheels, tires, and pinion gear. Assembly and painting required.

New to RC? Check out our Newcomer's Guide to Radio-Controlled Cars and Trucks

Features

  • 5-gear laydown transmission with low profile motor mount moves weight of motor closer to the center of the car
  • Long-arm suspension geometry improves grip and predictability in all conditions

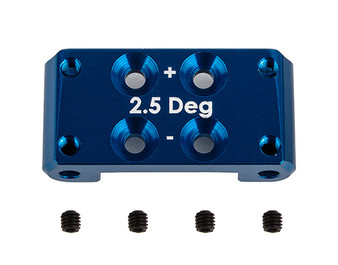

  • KPI adjustable steering and caster blocks allows for fine tuning steering feel. Three options are included in the kit.
  • Vertical front outer ballstud allows fine tuning of roll center, camber gain, and link length
  • Height adjustable aluminum front bulkhead allows for further tuning of front roll center
  • Standard and HRC (High Roll Center) rear hubs included
  • Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias
  • 7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
  • HD 69mm CVA bones and differential outdrives for improved durability
  • Lightweight molded servo mount
  • One-piece rear wing mount improves durability
  • New 7-inch rear wing and 2.5-inch front wing
  • Low-profile body included
  • Shock tower covers front and rear
  • 3.5mm turnbuckles and ballcups

Required to Complete

  • 1:10 scale 540-size electric RC car motor
  • 1:10 scale radio control electronic speed control
  • 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
  • Battery charger (for chosen battery mentioned above)
  • Lexan specific spray paint for body
  • 1:10 scale off-road wheels and tires
  • 4 AA batteries for radio-controlled car radio
  • Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer (#1499) or Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler.
  • 2-channel surface transmitter, 2-channel receiver, and steering servo

Manuals/Documents

Setup Sheets

Download Driver Event Date
Brent Thielke JConcepts Clash of Champions 01/04/2025
Indoors, dirt, large size, high grip, glued surface
Lucas Smith JConcepts Clash of Champions 01/04/2025
Indoors, dirt, large size, high grip, glued surface
Spencer Rivkin JConcepts Clash of Champions 01/04/2025
Indoors, dirt, large size, high grip, glued surface
Brent Thielke US Carpet Off-Road Championships 12/08/2024
Indoors, CRC carpet, very high grip, tight, medium size
Brent Thielke ROAR 1:10 Carpet Off-Road Nationals 08/18/2024
Indoors, black crc carpet, medium size, medium-high grip
Jovy Levin JConcepts Summer Carpet Indoor Nationals 06/09/2024
Indoors, carpet, high grip, tight
Spencer Rivkin ROAR 1:10 Dirt Off-Road Nationals 04/21/2024
Indoors, natural dirt, high grip, low moisture, grooved
Brent Thielke ROAR 1:10 Dirt Off-Road Nationals 04/21/2024
Indoors, natural dirt, high grip, low moisture, grooved
Mason Templeman ROAR 1:10 Dirt Off-Road Nationals 04/21/2024
Indoors, natural dirt, high grip, low moisture, grooved
Jermaine Robinson JBRL Round #1 03/31/2024
Indoors, dirt, medium-high grip, dry, grooved
Matthew Gonzales JBRL Round #1 03/31/2024
Indoors, dirt, medium-high grip, dry, grooved
Brent Thielke JConcepts Spring Indoor Nationals 03/24/2024
Indoors, Black CRC Carpet, Medium-High Grip
Marcus Kaerup British Off-Road Grand Prix 03/09/2024
Indoor, carpet, large, very high grip
Davey Batta Desert Classic 03/03/2024
Indoors, dirt, medium-high grip, dusty, grooved
Aydin Horne New York State Off-Road Championship 02/18/2024
Indoors, Carpet, Very High Grip, Fuzzy
Spencer Rivkin JConcepts Winter Indoor Nationals 02/11/2024
Indoors, Dirt, Medium-High Grip, Dusty, Hard Packed
Brent Thielke California State Championships 02/04/2024
Indoors, Glued Dirt, Hight Grip, Smooth, High Speed
Davey Batta California State Championships 02/04/2024
Indoors, Glued Dirt, Hight Grip, Smooth, High Speed
Spencer Rivkin Club Racing 01/24/2024
Indoors, Dirt, Hard Packed, Dusty, Misted, Grooved
Aydin Horne Carpet Testing 01/21/2024
Indoors, CRC Fastrak Carpet, Medium-High Grip, Fuzzy
Brandon Foote Carpet Testing 01/21/2024
Indoors, Carpet, CRC Black, Very High Grip, Medium Size
Dustin Evans Club Racing 01/21/2024
Indoors, Dirt, High Grip, Small, Tight
Alexander Landen Carpet Testing 01/14/2024
Indoors, EOS Carpet, Large, High Grip
Marcus Kaerup Carpet Testing 01/14/2024
Indoors, EOS Carpet, Large, High Grip
Billy Hayden Club Racing 01/14/2024
Indoors, Dirt, Medium-High Grip, Blown Off, Misted
Tommy/Jamie Hall BRCA Masters 01/13/2024
Indoors, Cork, Medium-Low Grip, Smooth
Andrew Selvaggi Outdoor Testing 01/10/2024
Outdoors, Dirt, Oiled, High Grip, Medium-High Grip, Dry
Brent Thielke Clash of Champions 01/07/2024
Indoors, dirt, very high grip, sealed surface
Davey Batta Clash of Champions 01/07/2024
Indoors, dirt, very high grip, sealed surface
Neil Cragg Winter Series 01/04/2024
Indoors, EOS Carpet, High Grip, Medium Size
Team Carpet Carpet Testing 01/01/2024
Indoors, CRC Black Carpet, High Grip
Power Source:
Electric
Terrain:
Off-Road
Body Style:
Buggy
Scale Size:
1:10 Scale
Assembly Level:
Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
Length:
390mm (15.35in)
Width:
varies
Wheelbase:
varies
Weight:
varies
Internal Gear Ratio:
2.60:1
Drive:
2WD
