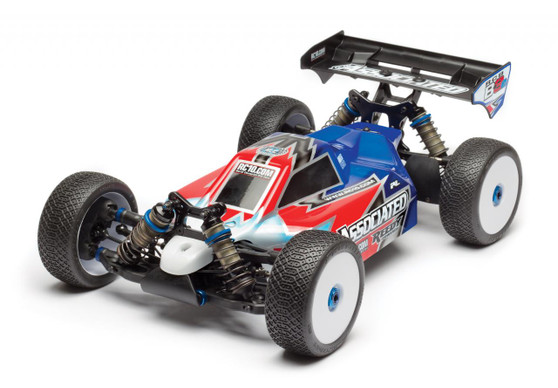

Team Associated has taken the performance engineering developed for the RC8B3 nitro buggy and used the data to create our new brushless-powered version, the RC8B3e Team Kit!
Answering the need of the fastest-growing 1:8 scale racing class, the RC8B3e Team Kit was designed specifically for brushless power. Using a unique, proprietary hard-anodized 7075-T6 aluminum chassis ingeniously designed for optimum weight distribution and superior handling, the RC8B3e drives like a champ.
Cross-class chassis compatibility. Knowing that racers would be competing in both 1:8 nitro and electric at the same events, the RC8B3e was designed to handle and respond to changes just like the RC8B3. This similar handling characteristic gives the racer a huge advantage, as tuning changes can be applied to both buggies seamlessly.
Designed to handle, built to win. The RC8B3e Team Kit was designed to give the dedicated electric 1:8 racer the highest level of performance that will help take your racing program to the next level.
Magazine Review
The RC8B3 nitro car enjoyed a long and rigorous development process, and that refinement put Team Associated well ahead to develop a competitive e-buggy. While the RC8B3e shares much of its parts list with the nitro buggy, it's no conversion. The weight distribution and power delivery of an electric car require different suspension settings, and Associated has tuned the car to suit. Where new parts were required to support electric power, Associated has stepped up with optimized designs, including a completely electric-specific chassis. The podium is calling, and the new RC8B3e is a potent contender. -- Radio Control Car Action, March 201
This vehicle needs extra parts to make it operational. Click on the SPECS tab above to see what extra equipment you may need to make the vehicle operational, such as batteries.
Features
- 7075-T6 hard anodized aluminum chassis features an optimized weight bias layout for improved handling and stability
- Front suspension features pillow ball uprights for increased adjustability and improved durability
- Lightweight ring gears and optimized precision ball bearing sizing reduces drivetrain rotational mass for improved acceleration and battery efficiency
- Gearboxes feature a 3.38:1 internal gear ratio with fast-access differentials for quick removal, tuning, and maintenance
- Six universal drive shafts for efficient drivetrain power delivery and ease of maintenance
- 7075-T6 aluminum 16mm Big Bore threaded shocks with TiN coated 3.5mm shafts, larger diameter precision springs, and optimized bladders for more precise volume compensation
- 7075-T6 aluminum shock towers front and rear feature finely tuned shock mounting and upper arm positions
- Refined suspension geometry with lower hinge pin inserts for quick and easy roll center adjustments
- Lightweight one-piece wing mounts feature height and forward positioning adjustment for more precise handling
- Two-piece sliding motor mount for easy gear mesh adjustment and motor removal
- Pro-Line RC8B3e clear body and Team Associated molded wing included
- The RC8B3e shares over 90% parts compatibility with the RC8B3 nitro buggy, offering the perfect solution for multi-class racers
Required to Complete
- 2 channel radio/transmitter -- FM/PCM/2.4GHz recommended
- Transmitter batteries
- 1:8 scale speed control, motor, and pinion (see motor manufacturer's gearing recommendations for correct pinion size).
- High-torque steering servo
- 1:8 scale buggy wheels and tires
- CA (Cyanoacrylate) glue
- Polycarbonate-specific spray paint or polycarbonate-specific bottled paint and airbrush
- Tools: Needle nose pliers, Hobby knife, Reamer/hole punch, Ride Height Gauge
- 4S LiPo battery and charger
Manuals/Documents
- Blank Setup Sheet (editable) (1.35 Mb)
- Product Brochure (1,020.66 Kb)
- Instruction Manual (18.38 Mb)
- RC8B3 and RC8T3 Tuning Options - press release (344.01 Kb)
- RC8B3 Arm Mounts with HRC - press release (250.46 Kb)
- #81343 Internal Diff Shims (455.95 Kb)
- #81357 Diff Assembly (1.23 Mb)
- #27128 Servo Washers -- press release (351.33 Kb)
- Factory Team Graphite Arm Stiffeners -- press release (153.37 Kb)
- RC8B3/T3 Anti-roll Bars -- press release (391.09 Kb)
- #81468 RC8B3 44/13 Gear Set-- press release (345.43 Kb)
- RC8B3 FT Universals, 92mm -- press release (354.67 Kb)
- RC8B3 FT V2 Rear Hubs (395.99 Kb)
- #1421-1424 1:8 Titanium Turnbuckles -- press release (372.12 Kb)
- FT Low Friction X-Rings -- press release (250.89 Kb)
- Spring Color Codes (128.05 Kb)
Setup Sheets
Download | Driver | Event | Date |
---|---|---|---|
Download | Spencer Rivkin / Ryan Cavalieri | ROAR 1:8 Electric Off-Road Nationals | 07/24/2016 |
Outdoors, dirt, low-medium grip, dry, hard packed | |||
Download | Dayton Brown | Grassroots Racing Series | 05/28/2016 |
Outdoors, dirt, medium grip, damp, bumpy | |||
Download | Team Setup | The Dirt Nitro Challenge | 02/21/2016 |
Outdoors, dirt, low-medium grip, dry, dusty, hard packed | |||
Download | Ryan Cavalieri | SikCross | 10/25/2015 |
Outdoors, medium grip, wet, loamy, bumpy | |||
Download | Richard Saxton | Club Racing | 10/07/2015 |
Indoors, clay, damp, medium-high grip | |||
Download | Michael Paige | LiveRC | 08/23/2015 |
Outdoors, medium grip, hard packed, dry, dusty, smooth |
- Power Source:
- Electric
- Terrain:
- Off-Road
- Body Style:
- Buggy
- Scale Size:
- 1:8 Scale
- Assembly Level:
- Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
- Length:
- 488mm (19.21in)
- Width:
- varies
- Wheelbase:
- 327.3mm (12.89in)
- Weight:
- varies
- Drive:
- 4WD
-
Reedy Power
$129.99$49.00WolfPack LiPo 4000mAh 35C 14.8VReedy's WolfPack LiPo batteries have been a huge success thanks to th…
-
Team Associated
$129.99$113.99Supports ID numbersThe RC4 (3-wire) transponder is the latest in the line of transponders from MyLap…
-
Team Associated
$129.99$113.99Lightest version ever offered!The RC4 Pro Transponder is specially designed to take any RC racer to …
-
Team Associated
$119.99$78.00RC8B3e ChassisSorry, item information is not available. But check the Documents or Parts tabs for an…
-
Team Associated
$79.99ESS-One+ 2017 Engine Sound SystemAlong with all the features of the earlier model, the ESS-One+ is l…
-
Factory Team
$63.99$54.39FT Hex/Nut Driver Tool Set, 5pc.Team Associated's Factory Team hex drivers fuse style with functiona…
-
Team Associated
$59.99$42.49RC8B3 44/13 Gear SetThe RC8B3 44T ring gear and 13T pinion gear have returned as a combined packaged…
-
Factory Team
$57.99$49.29RC8B3 FT Universals, 92 mmAdd a set of these new optional 92mm universals to your RC8B3 series buggy…
-
Team Associated
$54.99RC8B3.1 CVA Driveshaft Set, 94 mm#81395 contents: qty 2 CVA Driveshafts, 94mm qty 2 CVA Axles, ste…
-
Team Associated

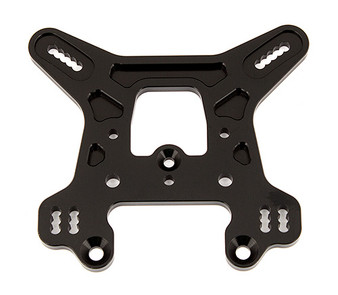

$49.99$29.00RC8B3 Shock Tower, rearSorry, item information is not available. But check the Documents or Parts ta…
-
Factory Team
$49.99FT Fox Shock Bodies, 16x30.5mm, with Genuine Kashima CoatJoining our 12mm FOX shocks are these NEW 1…
-
Factory Team
$49.99FT Fox Shock Bodies, 16x39.5mm, with Genuine Kashima CoatJoining our 12mm FOX(R) shocks are these NE…
-
Factory Team
$39.99$33.99FT Titanium Turnbuckles, M4x85mmNew Factory Team titanium turnbuckles add bling and durability at an…
-
Team Associated

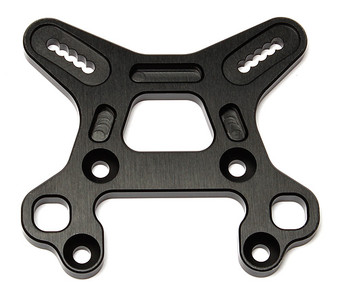

$39.99RC8B3 Shock Tower, frontSorry, item information is not available. But check the Documents or Parts t…
-
Team Associated
$39.99RC8B3 Arm Mount D, HRCTeam Associated's new RC8B3 Arm Mounts with High Roll Center offer increased g…
-
Factory Team
$38.99RC8B3 FT Front Shock Tower, carbon fiberThis lightweight carbon fiber version of the shock tower sav…
-
Team Associated

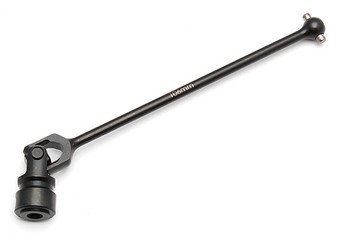

$35.99$30.59Center Universal, 106 mmSorry, item information is not available. But check the Documents or Parts t…
-
Team Associated
$35.99RC8B3.1 CVA Driveshafts, 94 mmSorry, item information is not available. But check the Documents or P…
-
Factory Team
$34.99$29.74FT Titanium Turnbuckles, M5x80mmNew Factory Team titanium turnbuckles add bling and durability at an…
-
Factory Team
$34.99$29.74FT Hex Driver Tool Set, 3pc.Team Associated's NEW Factory Team hex drivers fuse style with functiona…
-
Team Associated
$34.99RC8B3 Shock Bodies, 30.5 mmSorry, item information is not available. But check the Documents or Part…
-
Team Associated
$34.99RC8B3 Shock Bodies, 39.5 mmSorry, item information is not available. But check the Documents or Part…
-
Factory Team
$34.99$29.75RC8B3.1 FT Arm Stiffeners, rear, carbon fiberThe new Factory Team carbon fiber graphite arm stiffene…
-
Team Associated
$34.99$29.75RC8B4 body, Mu, clearSorry, item information is not available. But check the Documents or Parts tabs…
-
Team Associated
$33.99$28.89RC8B3e Pro-Line Body, clear with masksVIDEO: Tips for painting clear bodiesThis part fits the follow…
-
Factory Team
$32.99$28.04FT 5-pc Metric Hex Bit Set, 1/4 in Drive5/64"/2.0mm (standard hex), 1.5mm (standard hex), 2.5mm (sta…
-
Team Associated

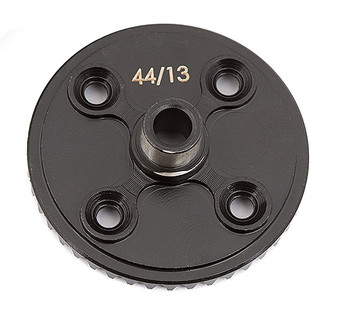

$32.99Diff Ring Gear, 44T, V2Sorry, item information is not available. But check the Documents or Parts ta…
-
Team Associated
$32.99$28.04RC8B3 Center Universal, 76 mmSorry, item information is not available. But check the Documents or Pa…
-
Factory Team
$30.99$26.34FT 1:8 Wheel Nut WrenchInstall or remove your 1:8 wheel nuts conveniently with this sturdy, hard-ano…
-
Factory Team
$29.99$25.49FT Titanium Turnbuckles, M4x50mmNew Factory Team titanium turnbuckles add bling and durability at an…
-
Factory Team
$29.99FT Aluminum Pillow BallsThe #81068 aluminum pillow balls are a direct replacement for the standard s…
-
Factory Team
$29.99$25.50RC8B3.1 FT Arm Stiffeners, front, carbon fiberThe new Factory Team carbon fiber arm stiffeners incre…
-
Team Associated
$25.99RC8B3 Upper Link MountSorry, item information is not available. But check the Documents or Parts tab…
-
Team Associated
$25.99RC8B3 Arm Mount C, HRCTeam Associated's new RC8B3 Arm Mounts with High Roll Center offer increased g…
-
Factory Team
$24.99$21.24FT Body ReamerMake short work of creating body mounting holes! This reamer with sharp tip includes h…
-
Factory Team
$24.99$19.99FT Silicone Diff Fluid, 1,000,000 cStFactory Team Silicone Fluids are made of the highest quality ma…
-
Team Associated
$24.99RC8B3 Anti-roll Bar Drop Link/ColletSorry, item information is not available. But check the Document…
-
Team Associated
$24.99$21.24RC8B3 CVA Axle, steelFitting CVAs into the standard front steering block and rear hub requires beari…
-
Factory Team
$23.99$20.39FT Titanium Turnbuckles, M5x44mmNew Factory Team titanium turnbuckles add bling and durability at an…
-
Team Associated
$23.99RC8B3.2 16mm Shock CapsAlong with its dual role of bleeder and bladder functionality, this cap has f…
-
Team Associated
$22.99$19.54RC8B3 Arm Mount A, HRCTeam Associated's new RC8B3 Arm Mounts with High Roll Center offer increased g…
-
Team Associated
$22.99$19.54RC8B3 Arm Mount B, HRCTeam Associated's new RC8B3 Arm Mounts with High Roll Center offer increased g…
-
Team Associated

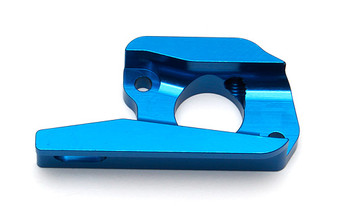

$22.99$19.54RC8B3e Motor Mount SlideSorry, item information is not available. But check the Documents or Parts t…
-
