RC10B6 Builders Support

$369.99
$199.99
You save $170.00
SKU:
90033
UPC:
784695900332
Out of stock

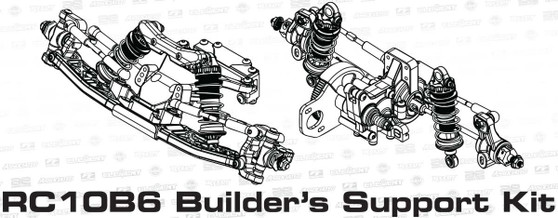

RC10B6 Builders Support
Champions by design. 1:10 scale 2WD off road has been Team Associated's signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 13 of the 18 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated has won more 2WD I.F.M.A.R World Championships than all other manufacturers combined!

The RC10B6 Builders Support Kit brings Team Associated race-winning technology to builders assembling dirt oval sprint cars, late models, and custom drag cars. The applications are endless. The Builders Support Kit has the major sub-assemblies builders need in a value-packed kit, without having to pay for excess 2WD off-road buggy parts.

At the heart of the RC10B6 Builders Support Kit is the Laydown and Layback transmissions with ball differential; both gearboxes are included. Putting the power down is the next-generation Octalock slipper clutch with Factory Team LCF slipper pads. Along with the easy-access rear differential, the rear end includes standard pivot rear blue aluminum arm mounts, 67mm CVA bones and B6.1 rear hubs. The kit also includes a set of four 12 mm Big Bore shocks, all four with 24mm length bodies for custom build applications. Builders need only select an appropriate application, and they can bolt on the suspension, shocks, hubs, drivetrain, and gearbox from the builder's kit. The opportunities are endless to customize your dirt oval or drag car from any of the B6-based third-party specialty manufacturers in the industry.

Features
  • Ball differential included
  • Laydown and Layback transmission assemblies included for tuning mass balance to different track surfaces
  • Adjustable differential height to allow drive shaft alignment through all ride height and axle height configurations
  • V2 12mm Big Bore threaded aluminum shocks (four 24mm bodies and four 21mm shafts) with X-rings for low friction assembly
  • V2 12mm shock springs (red front, yellow rear) for most dirt oval and on-road type applications
  • RC10B6 front end assembly (steering, top plate, and suspension) with gull wing front arms and blue aluminum front axles
  • Factory Team ball bearing set with 24 precision oiled ball bearings
  • Set of six 48mm turnbuckles, ball cups, and HD metric ball studs
  • Standard pivot rear aluminum arm mounts for use with 67mm CVA bones and RC10B6.1 rear hubs
  • Aluminum rear ball stud mount with three link positions for maximum adjustability and added strength
  • Lightweight aluminum one-piece top shaft
  • New RC10B6.3 servo mounting system with direct-to-chassis aluminum chassis mounts and molded brace with transponder mounting location
  • Octalock spur gears and 19mm Octalock LCF pads
  • 2.5 mm thick machined shock pistons
  • Blue aluminum shock bushings
  • Molded wire clips included for motor and ESC wire organization
  • +1 carbon fiber steering arms
  • Black steel LP serrated wheel nuts
  • 3mm I.D. molded plastic spacers included for ball stud and shim needs
  • 7mm aluminum clamping wheel hexes
  • Fasteners and metric hardware


Not Included (Builders Support Kit vs. 2WD buggy kit)
  • Carbon-fiber front and rear shock towers
  • Aluminum chassis and molded side rails
  • Polycarbonate body and rear wing
  • Rear suspension arms
  • Rear wing mount assembly
  • Front wing and front wing mount assembly
  • Battery mounting strap and hardware
  • Set screw and flanged nut rear arm shock mounting hardware
  • Shock fluid
  • Aluminum ball stud washers
  • Aluminum ESC tray

Required to Complete
  • RC10B6 based dirt oval or drag conversion kit (see conversion vendors list following), adjustable toe-in rear arms may be sold separately)
  • Conversion-specific body for dirt oval or drag application
  • 1:10 scale electric motor and electronic speed control
  • 7.4V-7.6V 2S LiPo with shorty battery dimensions (standard or low-profile height)
  • Battery charger (suited for one of the batteries mentioned above)
  • 2-channel surface transmitter, 2-channel receiver, and steering servo
  • Spray paint for Lexan(R) bodies
  • Silicone shock fluid
  • Pinion gear
  • 1:10 scale wheels and tires (application specific)

Conversion Vendors List
Click here to see listing of vendors.

Other Helpful Items
  • Silicone shock fluid (refer to catalog for complete listings)
  • Silicone diff fluid (refer to catalog for complete listings)
  • FT body scissors (AE Part #1737)
  • FT body reamer (AE Part #1499)
  • FT hex/nut driver set (AE Part #1519)
  • CA tire adhesive (AE Part #1597)
  • Hobby knife
  • Needle nose pliers
  • Wire cutters
  • Soldering iron
  • Calipers or a precision ruler

Optional Parts
  • 1111 FT turnbuckle wrench
  • 1114 FT dual turnbuckle wrench
  • 1369 FT alum clamping servo horn 23T, 15.5mm
  • 1370 FT alum clamping servo horn 25T, 15.5mm
  • 1405 FT Titanium Turnbuckles, 48 mm/1.875 in, silver
  • 1498 FT Universal Tire Balancer
  • 1568 FT 5.5mm Short Nut Driver
  • 1569 FT 7.0mm Nut Driver, T-Handle
  • 1570 FT 7.0mm Short Nut Driver
  • 1579 FT Ball Cup Wrench
  • 1736 FT Blue Body Clips, sh
  • 6576 FT Precision Ground Diff Drive Rings
  • 71034 FT Clamping Wheel Hexes, 6.0mm
  • 91569 FT 12x24 Shock Bodies V2, FOX Kashima Coat
  • 91576 FT 12x23mm FOX Shock Bodies
  • 91577 FT 12x27.5mm FOX shock bodies
  • 91616 FT 3x21mm chrome shock shaft
  • 91620 FT 3x27.5mm Chrome Shock Shafts
  • 91659 RC10B6 FT Brass Bulkhead, 30g
  • 91658 RC10B6 FT Aluminum Bulkhead, 10g
  • 91668 RC10B6 FT Aluminum Steering Bellcranks
  • 91669 RC10B6 FT Aluminum Steering Rack
  • 91671 RC10B6 Flat Front Arms
  • 91672 RC10B6 Flat Front Arms, hard
  • 91674 RC10B6 Gullwing Front Arms, hard
  • 91681 RC10B6 Caster Block Hat Bushings, 0.5, 1.5, 2.5mm
  • 91683 RC10B6 FT Titanium Front Axles
  • 91727 RC10B6.1 FT Titanium Turnbuckle Set, 3x48mm
  • 91760 RC10B6.1 FT Rear Hubs, blue aluminum
  • 91773 RC10B6.1 FT Brass Arm Mount C
  • 91781 RC10B6.1 FT Aluminum Gear Diff Cover
  • 91793 FT Aluminum Diff Height Inserts
  • 91796 FT Carbon Fiber Laydown/Layback Motor Plate
  • 91797 FT Titanium Top Shaft Screw
  • 91800 RC10B6.1 FT Direct Drive Kit
  • 91802 RC10B6.1 FT Vented Slipper Hub, inner
  • 91805 RC10B6.1 HTC Slipper Hub, outer, and Disc
  • 91806 RC10B6.1 FT Vented Slipper Hub, outer
  • 91807 RC10B6.1 FT HTC Vented Slipper Hub, outer, and Vented Disc
  • 91862 FT Clamping Wheel Hex, 4.0mm
  • 92011 RC10B6 Arm Mount Inserts, 1/0.5
  • 92100 FT Aluminum Wing Buttons
  • Current parts listing.



New to RC? Check out our Newcomer's Guide to Radio-Controlled Cars and Trucks

Setup Sheets

DownloadDriverEventDate
DownloadBrad ShearerReedy International Off-Road Race of Champions01/21/2018
Indoors, dirt, medium-high grip, grooved, hard packed
DownloadDustin EvansReedy International Off-Road Race of Champions01/20/2018
Indoors, dirt, medium-high grip, grooved, hard packed
DownloadDustin EvansJConcepts Indoor National Series Finale12/10/2017
Indoors, dirt, medium-high grip, choppy, grooved, hard packed
DownloadSpencer Rivkin2017 Team Associated Top Gun Shootout12/03/2017
High-traction dirt
DownloadZeke BallingerBaseline06/12/2017
Indoors, clay, medium grip, hard packed
DownloadKody NumedahlJConcepts Stock Nationals04/30/2017
Indoors, clay, very high grip, smooth, low dust
DownloadSpencer Rivkin / Brent ThielkeBuggy Asia Madness04/02/2017
Indoors, astroturf, medium grip
DownloadAlex KosciuszekApril Fools Classic04/02/2017
Indoors, clay, high grip, smooth
DownloadKody Numedahl / Brent ThielkeLas Vegas Off-Road Carpet Championship03/26/2017
Indoors, carpet, very high grip, tight
DownloadJoona HaatenenEOS #403/18/2017
Carpet, high traction
DownloadDustin EvansRumble In The Rockies02/12/2017
Indoors, clay, high grip, smooth, tight
DownloadKarri SalmelaFinnish Indoor Nationals02/11/2017
Med-high traction, multi-surface
DownloadBrent Thielke2017 Reedy International Off-Road Race of Champions01/22/2017
Dirt, med grip, grooved
DownloadRyan Cavalieri2017 Reedy International Off-Road Race of Champions01/21/2017
Dirt, high grip, grooved
DownloadBrent ThielkeJConcepts Indoor National Series Finale12/11/2016
Indoors, beach clay, high grip, bumpy, low dust
DownloadBrent ThielkeTeam Associated Top Gun Shootout12/04/2016
Indoors, clay, high grip, smooth
DownloadSarah Ann ErnstTeam Associated Championships11/16/2016
Med. traction, smooth, hard packed dirt
DownloadRyan CavalieriTeam Associated Off-Road Championships11/06/2016
Indoors, dirt, packed, medium grip, smooth, tight
DownloadDaimon BorkowiczJConcepts Fall Indoor Nationals10/09/2016
Indoors, clay, high grip, smooth
DownloadAlex KosciusekJConcepts Turf Nationals09/11/2016
Dirt, Astroturf, high traction
DownloadCole TollardROAR 1:10 Electric Off-Road Nationals08/14/2016
Indoors, clay, high to medium grip, smooth to bumpy
DownloadJake MayoROAR 1:10 Electric Off-Road Nationals08/14/2016
Indoors, clay, high to medium grip, smooth to bumpy
DownloadSpencer RivkinJConcepts Summer Indoor Nationals07/10/2016
Indoors, clay, high grip, smooth
DownloadRyan CavalieriEuropean Offroad Series, Round 404/29/2016
Indoors, carpet, medium grip, smooth
Power Source:
Electric
Terrain:
Off-Road
Body Style:
Buggy
Scale Size:
1:10 Scale
Assembly Level:
Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
Length:
varies
Width:
varies
Wheelbase:
varies
Weight:
varies
Internal Gear Ratio:
varies
Drive:
2WD
