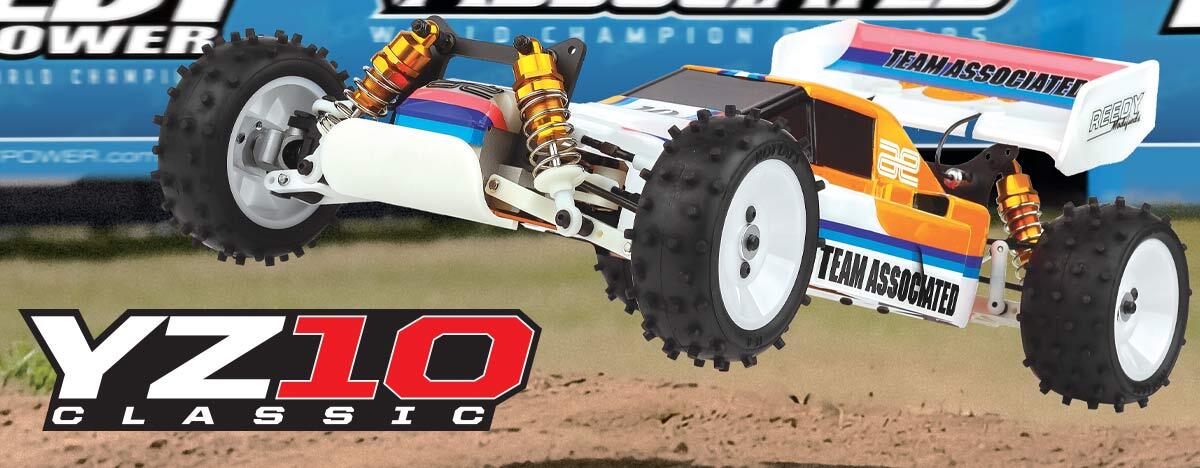

This car is state of the art. It’s not only designed to be the best 4WD car in the world, it’s also designed so that it’s easy to work on. If you’re really serious about 4WD racing, race the best - the YZ-10.
The front end includes a gear differential, universal drive shafts and an adjustable track width. Plus fully adjustable coil over, oil-dampened shocks, front and rear.
High traction, low profile tires and wheels, front and rear, for super handling. Realistic-looking Protect IV body has separate under pan to keep your car clean. Body includes functional air scoop for the motor cooling.
With a very efficient 2-belt drive system, the YZ-10 includes a gear differential, slipper clutch, and universal drive shaft. Saddle mount battery pack for better weight distribution.

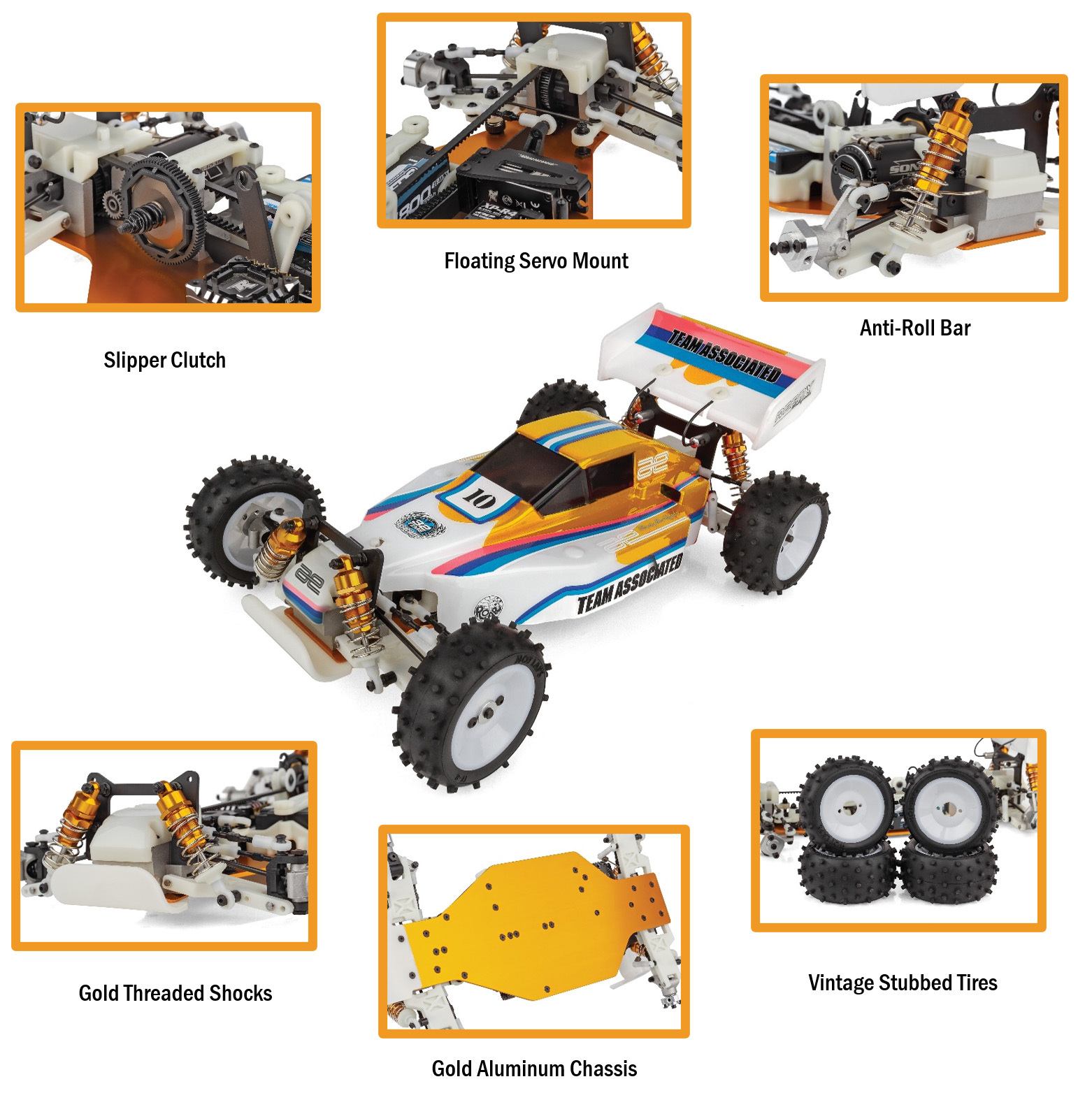

FEATURES
- 4WD belt drive
- Adjustable servo saver
- 3 servo horns included
- 21T pinion gear included
- Chassis protector
- Metric hardware throughout
- Fluid-filled gear differentials
- Ball bearings
- Gold Aluminum chassis
- Aluminum bulkhead, motor mount, rear hubs, and steering knuckles
- Spring loaded servo saver
- Floating servo mount
- Gold Threaded shocks
- Anti-roll bar
- Original studded tires
- Slipper clutch
- Battery box for shorty battery
- White Dyeable Plastics
Required to Complete
- 2S Shorty LiPo battery for radio-controlled car
- Radio control battery charger
- 1:10 scale radio control electronic speed control
- 1:10 scale 540-size electric RC car motor
- 2-channel RC surface transmitter and its batteries
- Steering servo
- 2-channel receiver
- Paint for the body
- Other helpful items: Body Scissors (#1737), FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler
Manuals/Documents
- Instruction Manual (16.34MB)
- Power Source:
- Electric
- Terrain:
- Off-Road
- Body Style:
- Buggy
- Scale Size:
- 1:10 Scale
- Assembly Level:
- Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
- Product Status:
- Active
- Length:
- 395mm (15.55")
- Power:
- Electric
- Width:
- 235mm (9.25")
- Height:
- 190mm (7.48")
- Wheelbase:
- 273.5mm (10.77")
